TessEm8000 Performance Comparison
|
A typical power distribution control display, see below, containing 2132 screen objects and 8 background color rectangles was used
to compare the performance of the TessEm8000 with an original TESSELATOR 8000. |
|
|
|

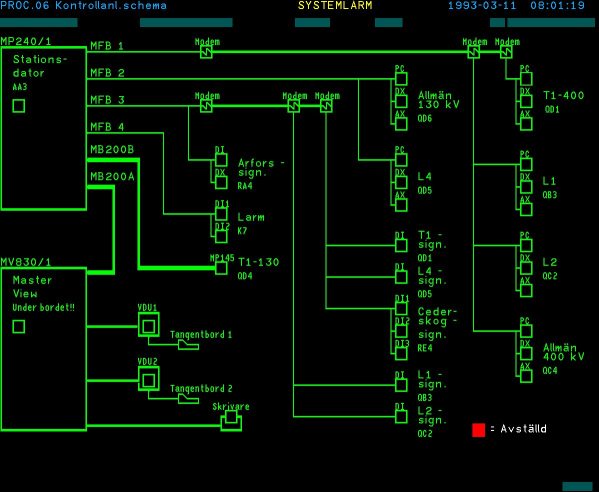

Typical power distribution control display |
| The display information was stored in Local Display Storage. Sending the following commands from a host computer to the display channel performed the test: CLEAR WORK AREA SCREEN (CF 48H) followed by LOCAL STORAGE LOAD (CF FBH). The command sequence was repeated 100 times sent in one communication message (ADLP10- and TOP-message). |
| Average display presentation time in ms |
| TessEm8000 | 55 (*) | 31 (**) |
| TESSELATOR 8300 | 280 (*) | - |
| (*) | Lines drawn using symbols. |
| (**) | Lines drawn using vectors. |
The TessEm8000, version 1.0.0, was running on a standard PC with the following data:
|
|
Check out the blistering performance of the TessEm8000 in a low resolution video! NOTE: The video file size is 6 MB if you are using a slow Internet connection! The video shows the TessEm8000 continuous retrieving and presenting displaying information from Local Display Storage on three displays (screens), as fast as possible! The TessEm8000 was running on a standard PC with the following data:
|
|
